GEMLITE FACE LIGHTED SIGN LETTERS
WITH PAINTED EDGE G-300

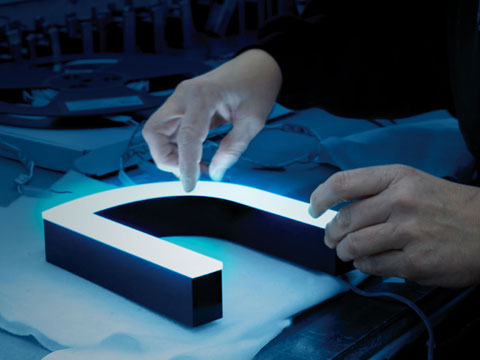

Face lighted with painted edges, 2 part plastic letters with LED
PRICE AND ORDER HERE
PAINT COLORS
- While it is possible to have more than one color on some variations the price would be much greater. For instance, on halo backlighted letters, the edge and face color could be painted differently but it would add another 50% to the cost due to paint masking. If this is desired it would need to be done as a custom addition. Call or email for details.
Return Style
- G100, G200 and G300 have 2 types of edge returns available. The stepped edge leaves some of the backplate showing while the full depth edge allows the face plate to fit seamlessly over the backplate. The stepped edge is less expensive than the full return edge.
-
PRODUCTION LEAD TIMES
Product usually ships in 2-3 weeks
What is Lighted Formed Plastic?

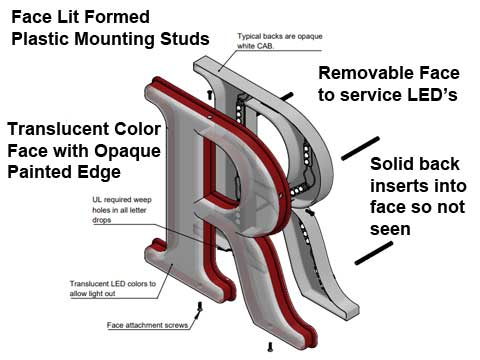

Gemlite or Lit Formed Plastic is a 2 part letter based on the popular formed plastic product produced for over 60 years. A molded plastic face fits over a molded plastic back that contain the LED modules. Traditionally this was a stepped return which partially revealed the white plastic back but we have recently introduced a full depth face that hides the back entirely. Gemlite is made in 5 different variants to suit different requirements. The material used for the face and back is a cotton based plastic known as CAB(Cellulose Acetate Butyrate) which is a durable plastic that remains flexible in all environments.
Lit formed plastic letters and logos are entirely produced in the USA and carry a manufacturer's lifetime warranty. LEDs on the other hand will not last forever. Most systems are designed to last approximately 50,000 hours, or around five years. After the LEDs fade or burn out, they will have to be replaced. Power supplies and LED modules ar UL Certified and carry a 5 year warranty.
The mount includes threaded blocks solvent-bonded to the letter back to receive a 10-24 threaded aluminum stud. Silicone adhesive should be applied to the studs and into the drilled holes at installation.A full size install pattern is included.
Variations
Gemlite Formed Plastic letters and logos are available in five variations.
Made with transparent pigmented plastic, formed plastic face and side lit G-100 letters offer the best of both face and side lighting visibility. These letters come in two return options and flat, round, or prismatic font faces for a refined appearance.
Formed plastic halo lit letters (G-200) provide UL-certified LED lighting to create a desirable glow around the letter back to create halo lighting. Formed plastic halo lit letters are made with durable plastic and come in four thicknesses.
Formed plastic side lit G-400 letters feature translucent plastic letter faces designed for LED lighting. Available in several face colors, our formed plastic side lit letters allow for painted letter faces with translucent returns.
Faux neon signs replicate the look of vintage neon with rounded letters, thin strokes, and lights that will not flicker like traditional neon signs. Our plastic faux neon signs come with flat returns and create the classic look of neon.
